ATMOSPHERE FURNACE
Precision controlled belt furnaces for the most demanding applications
These atmosphere furnaces are available with temperature ranges up to 1150°C and with various process atmospheres including hydrogen and nitrogen. BTU designs and manufactures inline controlled atmosphere furnaces and hydrogen furnaces for a number of applications including:
- Flux-free Hydrogen wafer bump reflow
- Glass-to-metal sealing
- Direct bond copper
- Furnace Brazing
- Sintering
- Heat-treating
These belt furnaces are fully customizable to meet varying process/production requirements. Controlled atmosphere furnace key features include:
- Muffle construction for high purity N2 atmosphere operation
- <2ppm O2 Inert atmosphere
- National Fire Protection Association NFPA 86, NFPA-79 and UL508a safe atmosphere compliant
- Made in the USA with high quality materials for maximum reliability
- Left Center Right Trim
- Improves part uniformity and yield
- Uniform eutectic across plates
- Gas Barrier
- Superior atmosphere separation
- <2ppm O2 Inert atmosphere
- Cooling Educators
- Shorter foot prints
- Controlled cooling of heavy loads
The Industry’s Best Atmosphere Control
Nitrogen | Hydrogen | Forming Gas | Argon

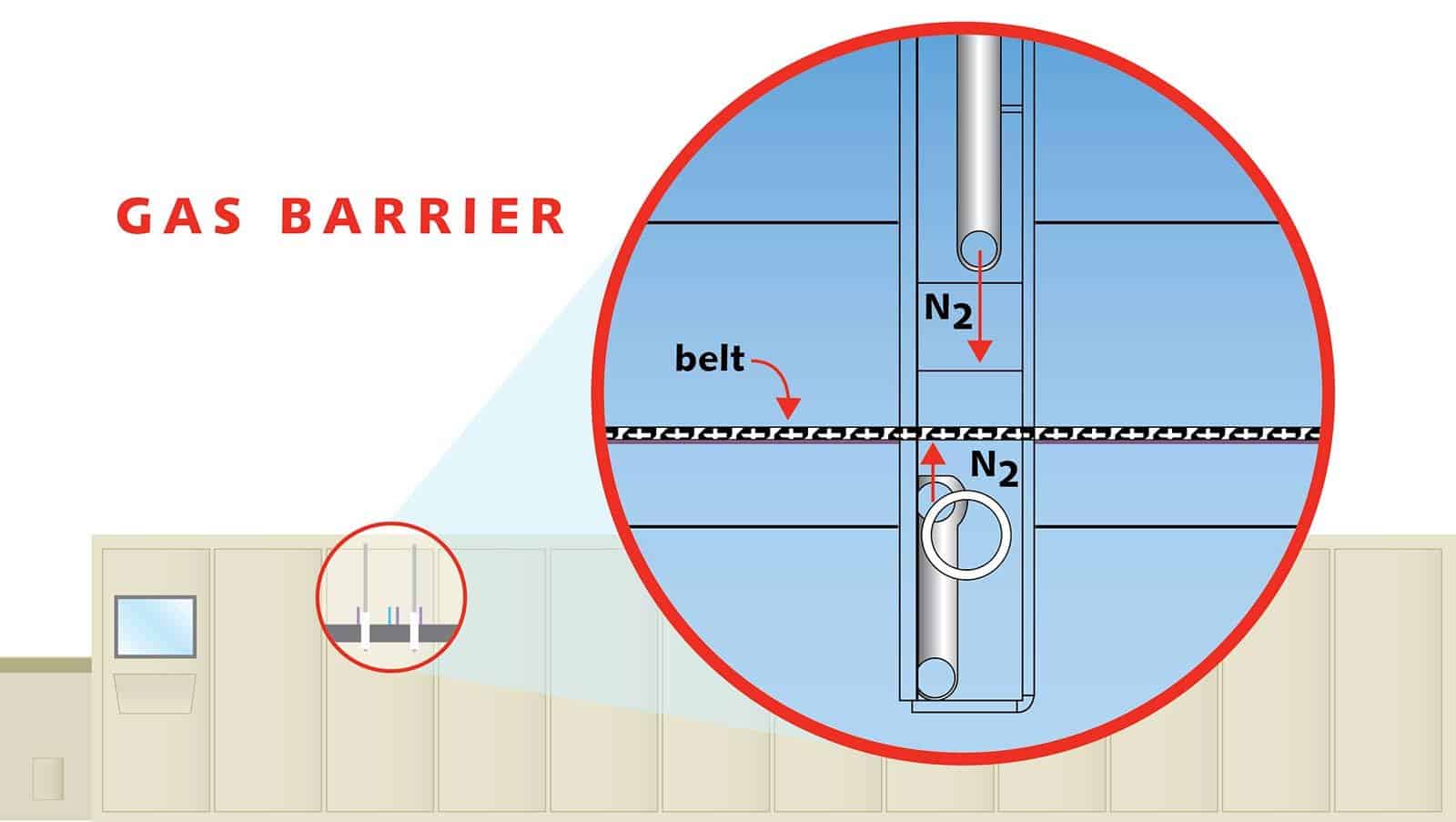

BTU is the industry leader in controlled atmosphere furnaces for continuous furnaces. Excellent atmosphere purity is achieved through the use of BTU’s patented gas barrier technology. In addition, BTU’s unique educator technology can be used to enhance cooling or control process atmosphere. The end result is superior efficiency, superior performance, and superior thermal uniformity.
BTU’s controlled atmosphere belt furnaces and custom furnaces feature BTU’s proprietary WINCON™ control system. WINCON features a simplified user interface and incredibly powerful analytical capabilities.
Contact BTU to learn more about how our controlled atmosphere belt furnaces save floor space and reduce costs all while shortening process times.
